Precision glass machining under coolant at IRD Glass

When the component
cannot drift,
the process cannot either.

Aerospace and defense buyers are qualifying more than a dimension. They are qualifying repeatability, traceability, domestic control, inspection evidence, and the supplier that must still be there when the program reaches production.

IRD manufactures optical, technical glass, sapphire, ceramic, and IR components across two Minnesota facilities for long-running aerospace and defense supply relationships.

Talk to an applications engineerStart a quote
23 yrsContinuous Honeywell supply relationship
98%+On-time delivery, past decade
100%Veteran-owned domestic manufacturer

Qualified by the programs
that keep buying.

IRD has supplied precision components to aerospace and defense organizations including Honeywell, Collins Aerospace, L3Harris, Lockheed Martin, and SpaceX. The Honeywell relationship has run continuously for 23 years.

Long tenure matters because the difficult work begins after first article: revision control, repeat inspection, schedule recovery, packaging, and the hundreds of small process decisions that keep the production part aligned with the approved part. Honeywell Aerospace has recognized that work with an Exceptional Quality Performance award at zero PPM.

The manufacturing route, inspection plan, and evidence package are agreed against your program before production — not assumed from a logo.

Honeywell
Collins Aerospace
L3Harris
Lockheed Martin
SpaceX
01Navigation02EO / IR03Laser systems04Production
Ring laser gyro blocks manufactured by IRD Glass

Technical glass faces have been produced to .000004″ flatness on established programs.

Inertial Navigation & Air Data

Geometry that becomes a reference inside the aircraft.

Ring-laser gyro blocks, accelerometer components, pressure tubes, pedestals, and super-flat interfaces depend on concentricity, parallelism, flatness, and material stability. IRD builds the glass and ceramic parts that sit inside altitude, airspeed, pressure, position, and inertial systems, then verifies the controlling geometry before it leaves the cell.

What IRD builds

Ring-laser gyro blocksAccelerometer componentsPressure tubesSensor pedestalsOptical flatsCeramic substrates

Typical applications

  • Inertial navigation
  • Air-data sensing
  • Altitude and airspeed
  • Positioning gyros

Materials

  • ZERODUR®
  • Fused silica
  • Borosilicate
  • Alumina
  • Zirconia

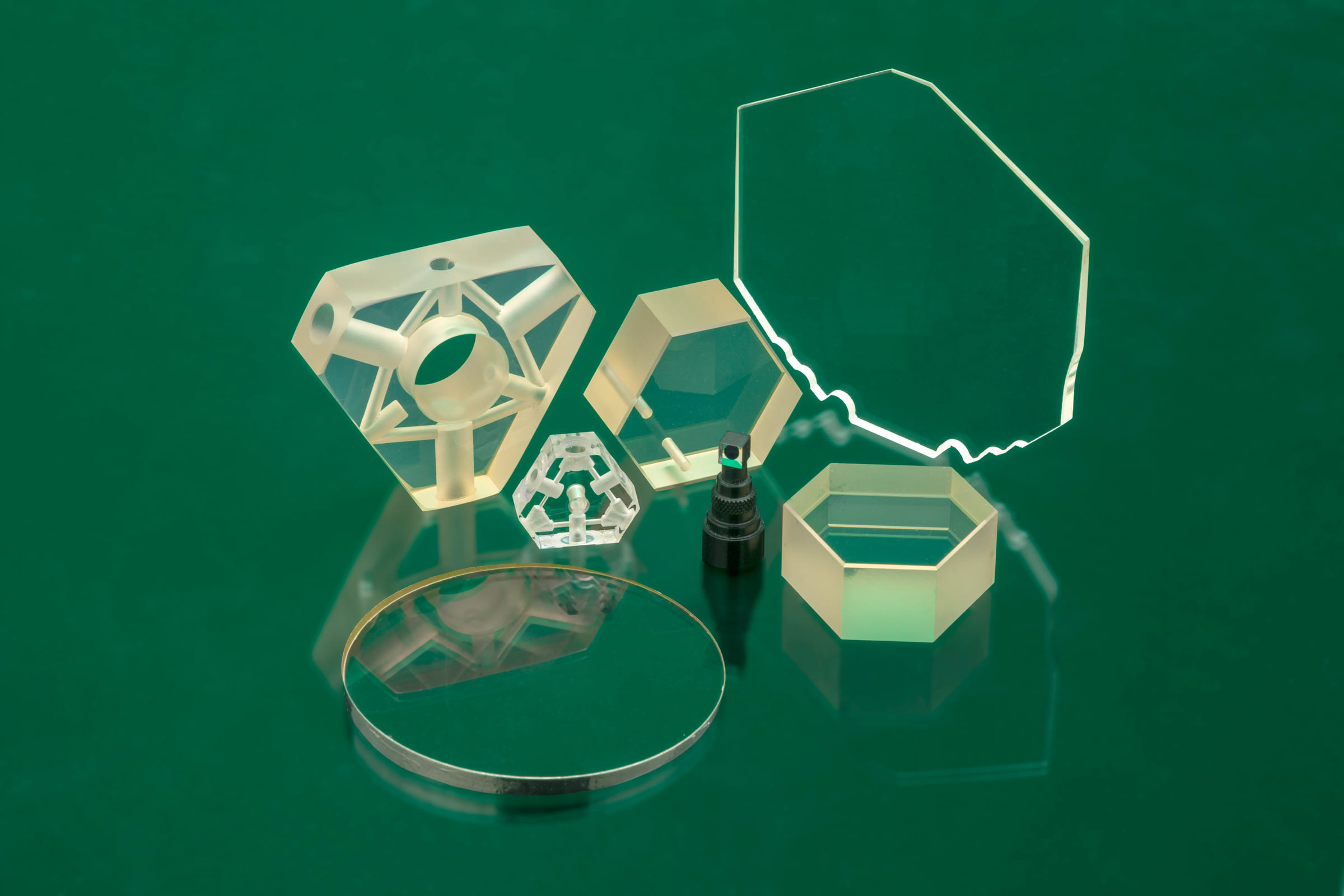

Optical wedges and gyro blocks for defense programs

IR material, coating, mount, and inspection are reviewed as one component route.

Electro-Optical & Infrared Systems

Windows and filters that protect the sensor without becoming the signal.

Detection systems need transmission, reflection, environmental durability, mounting, and coating to work together. IRD fabricates windows, filters, mirrors, and lenses in sapphire, silicon, germanium, chalcogenide, fused silica, and related materials for visible, UV, and infrared systems.

What IRD builds

IR windowsProtective domesCoated filtersDetection lensesLaser mirrorsSight windows

Typical applications

  • Thermal imaging
  • Night vision
  • Detection systems
  • Screening and perimeter systems

Materials

  • Sapphire
  • Silicon
  • Germanium
  • Chalcogenides
  • Fused silica
Precision optical components manufactured by IRD Glass

Angular capability reaches 3 arc sec, with flatness below 1/20 wave.

Laser & Directed Optical Systems

Arc-second geometry and high-energy surfaces in the same supply chain.

Prisms, wedges, mirrors, beamsplitters, filters, cavity components, and tooling combine surface figure, angular control, roughness, coating, and damage-threshold requirements. IRD connects fabrication, coating, and metrology so one supplier owns the finished optical behavior.

What IRD builds

HLDT mirrorsPrisms and wedgesBeamsplittersCavity reflectorsFiltersPrecision tooling

Typical applications

  • Rangefinding
  • Beam steering
  • Sighting
  • Laser designation
  • Alignment and reference

Materials

  • Fused silica
  • N-BK7
  • Sapphire
  • Filter glass
  • ZERODUR®
A precision polishing cell running at IRD Glass

More than 98% on-time delivery, sustained across the past decade.

Platform Integration & Production

The component still has to arrive, documented, after the prototype succeeds.

Cell-based manufacturing assigns dedicated people, equipment, and floor space to repeat programs. That makes revision control, capacity, packaging, documentation, and root-cause work part of the same process that produced the approved article.

What IRD builds

Repeat-production opticsKitted componentsCustom packagingInspection reportsCustomer-specific cells

Typical applications

  • Production programs
  • Sustainment
  • Spare components
  • Platform upgrades

Materials

  • Optical glass
  • Technical glass
  • Sapphire
  • Technical ceramics
  • IR substrates

The requirement.The measured range.

Every row controls a different failure mode. State the wavelength, aperture, datum scheme, inspection method, environment, and production quantity with the drawing.

AttributeTypicalBest caseWhere it matters
PolishingRa < 1 µinRa < 5 ÅScatter- and energy-sensitive optical surfaces
Flatness1 wave< 1/20 waveWindows, mirrors, filters, and reference faces
Parallelism30 arc sec< 5 arc secBeam steering and plane-parallel components
Angle5 arc min3 arc secPrisms, wedges, and alignment geometry
Machining±.005″±.0001″Mounting features and custom profiles
Grinding±.002″±.0002″ flatnessHard materials and structural geometry

The inspection record is part of the component.

Dimensional, surface, and angular requirements are verified with the method appropriate to the print. The acceptance data and handling package are agreed before production rather than assembled after inspection.

OGP vision systems

Non-contact dimensional measurement for small and complex geometry.

Zygo NewView

White-light interferometry for surface roughness and micro-form verification.

Laser interferometers

Transmitted and reflected wavefront checks on flats, windows, and mirrors.

Nikon autocollimators

Angular and parallelism verification for arc-second requirements.

Interferometric surface measurement at IRD Glass

How the program is supported

Supplier qualification is program-specific. IRD brings a certified quality system, ITAR registration, domestic facilities, veteran ownership, and cell-based process control into that review.

ISO 9001:2015

Certified quality management system for ultra-high precision glass, optical, and ceramic components.

ITAR registered

Registered with the Directorate of Defense Trade Controls; controlled work stays domestic across both plants.

Veteran-owned

100% owned by two United States veterans representing the Navy and the Army; SBA-qualified small business.

Cell-based manufacturing

Dedicated people, equipment, and process ownership from material through inspection.

Bring the controlled print and the program context into the same conversation.

Talk to an applications engineer

An applications engineer will review material, tolerance, inspection, handling, and volume together.
