Custom windows

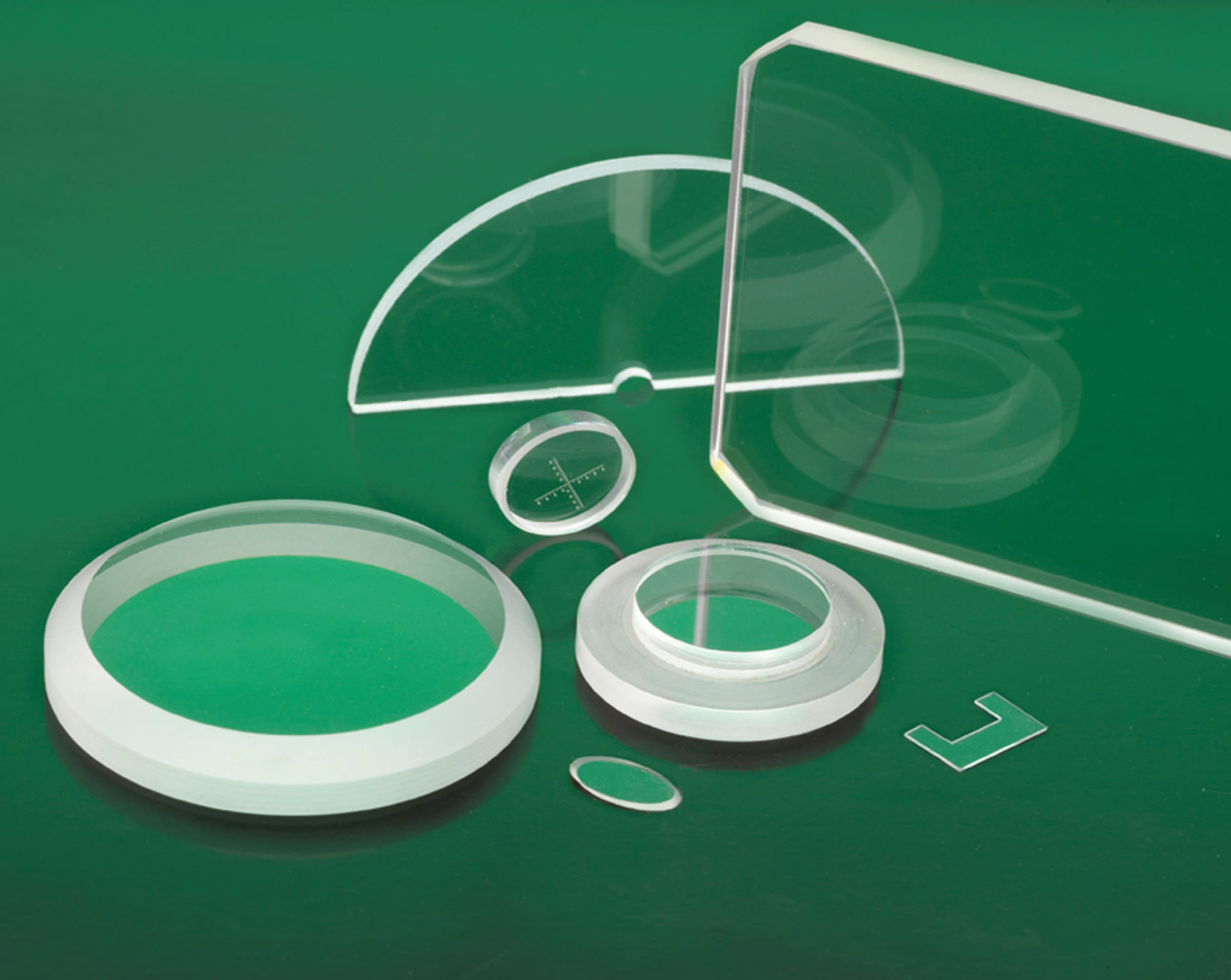

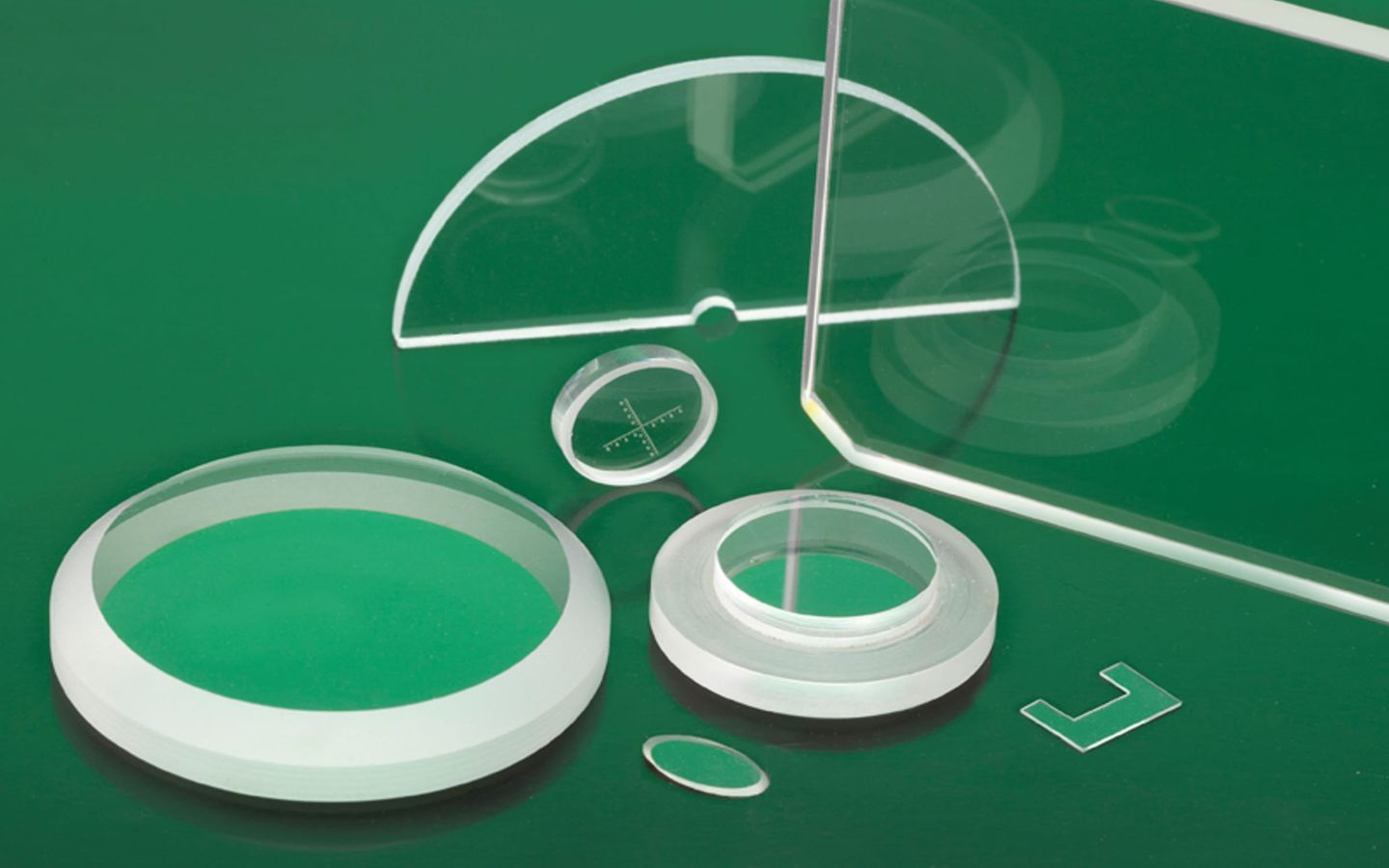

Protective and transmitting windows built around the housing, pressure, abrasion, and wavelength requirements.
Up to 8″ in diameter
IRD manufactures to your print. Send the drawing with the environment, the clear aperture, the chip and finish specifications you can accept, and how each one is measured, and the technical team reviews it for manufacturability before quoting. For a new design that review is free of charge.

Hardness is only the starting property. Geometry, edge condition, polish, and coating determine whether the part integrates cleanly.

Protective and transmitting windows built around the housing, pressure, abrasion, and wavelength requirements.
Up to 8″ in diameter

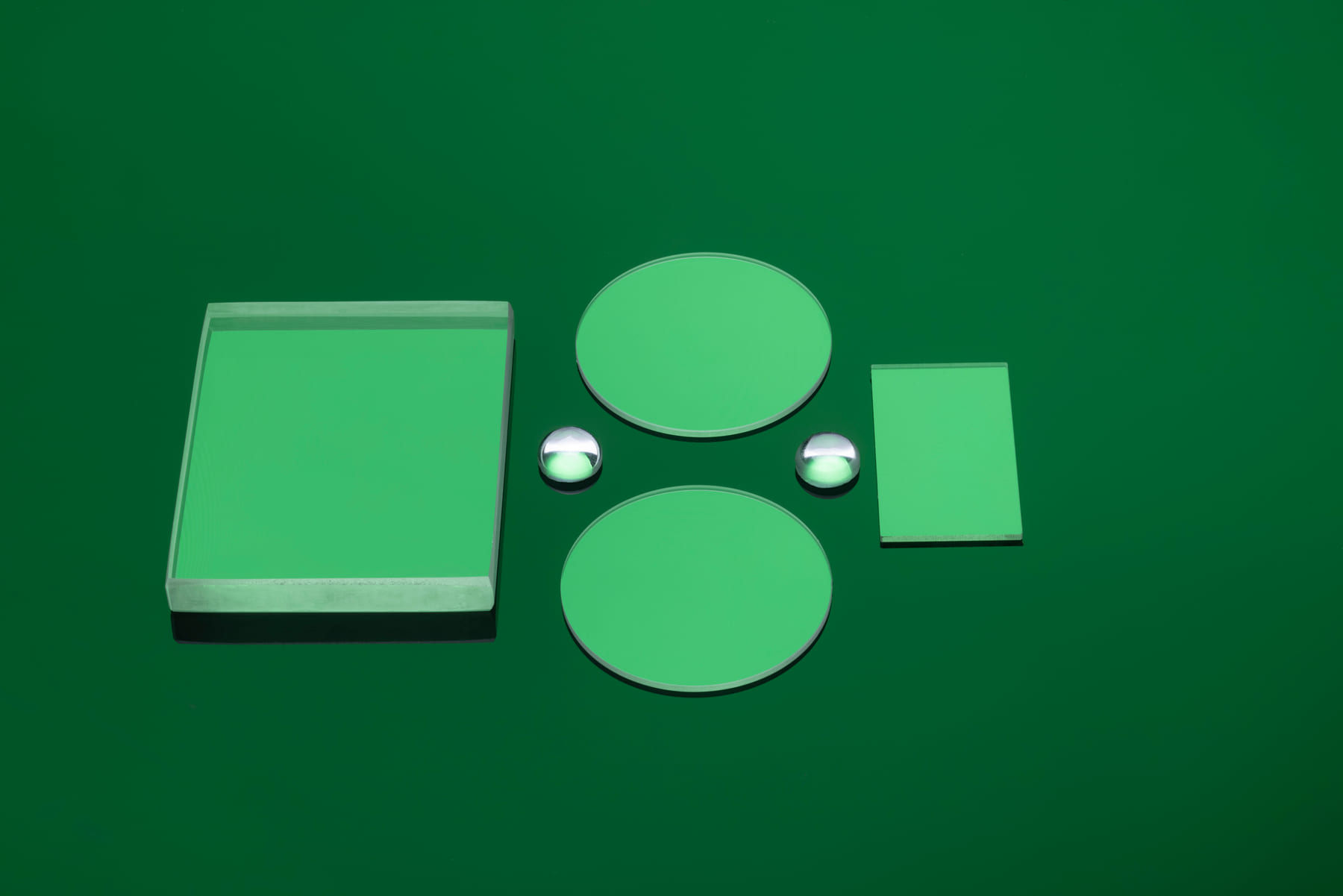

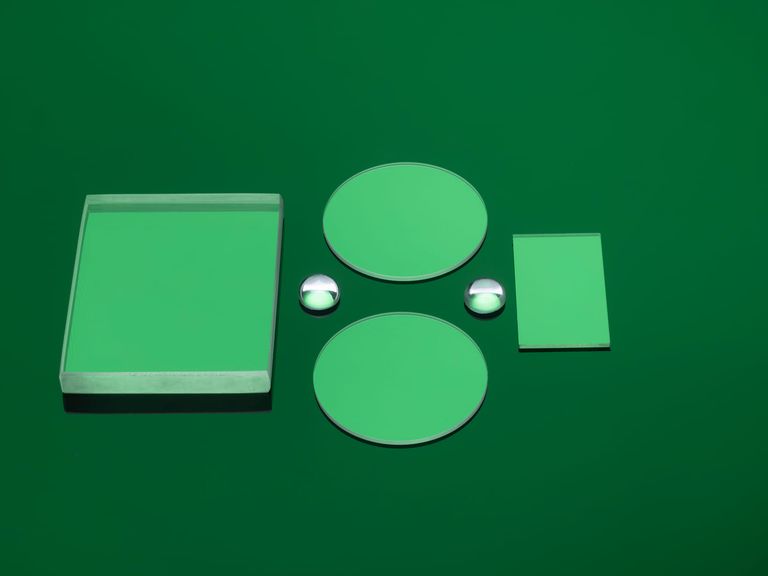

Optical sapphire surfaces processed for sensors, radiometry, laser, and imaging applications, with coatings from UV through IR.

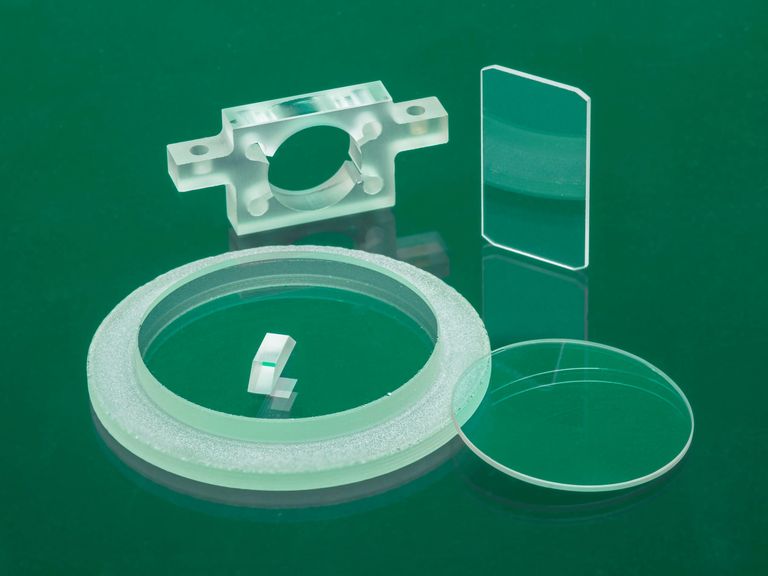

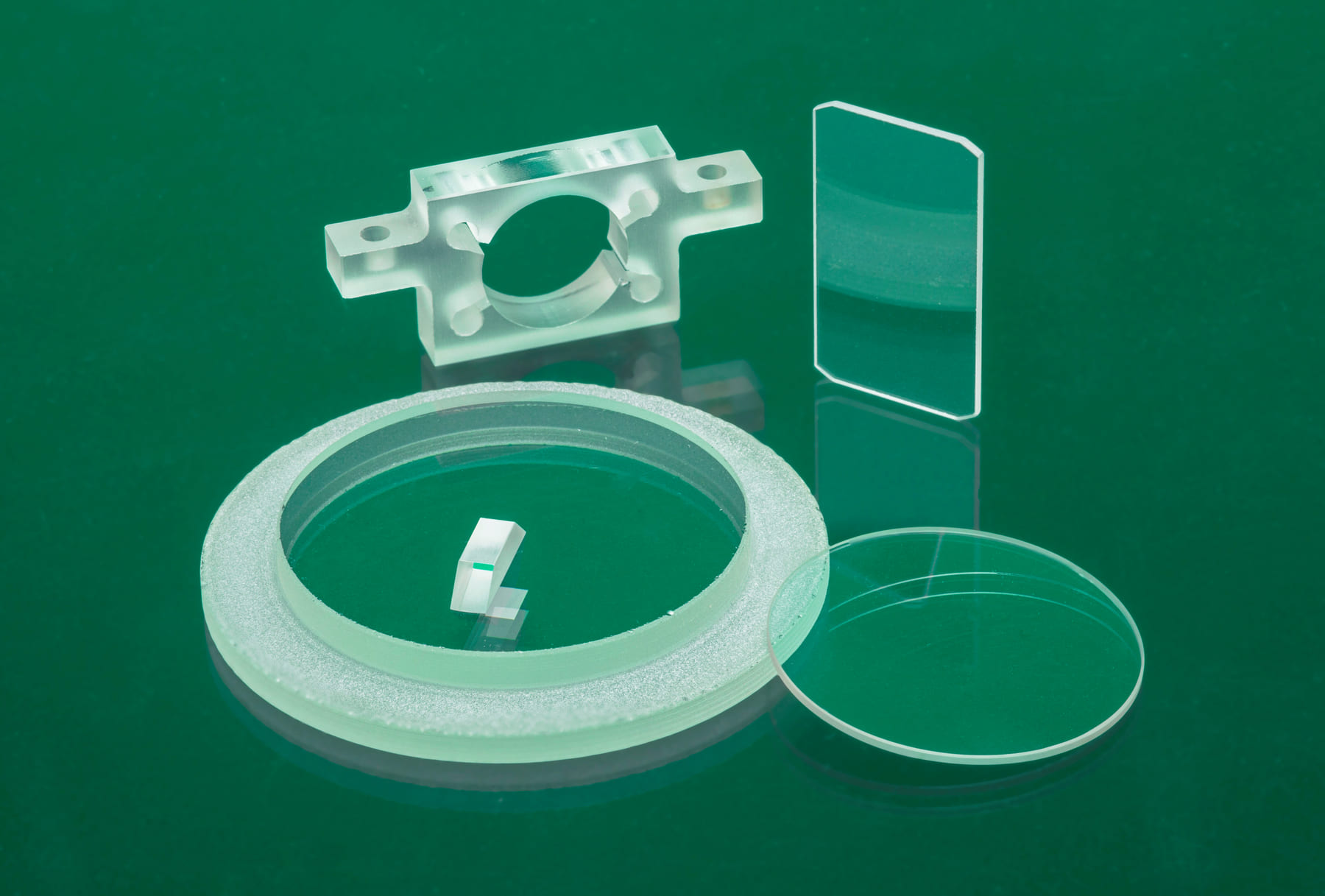

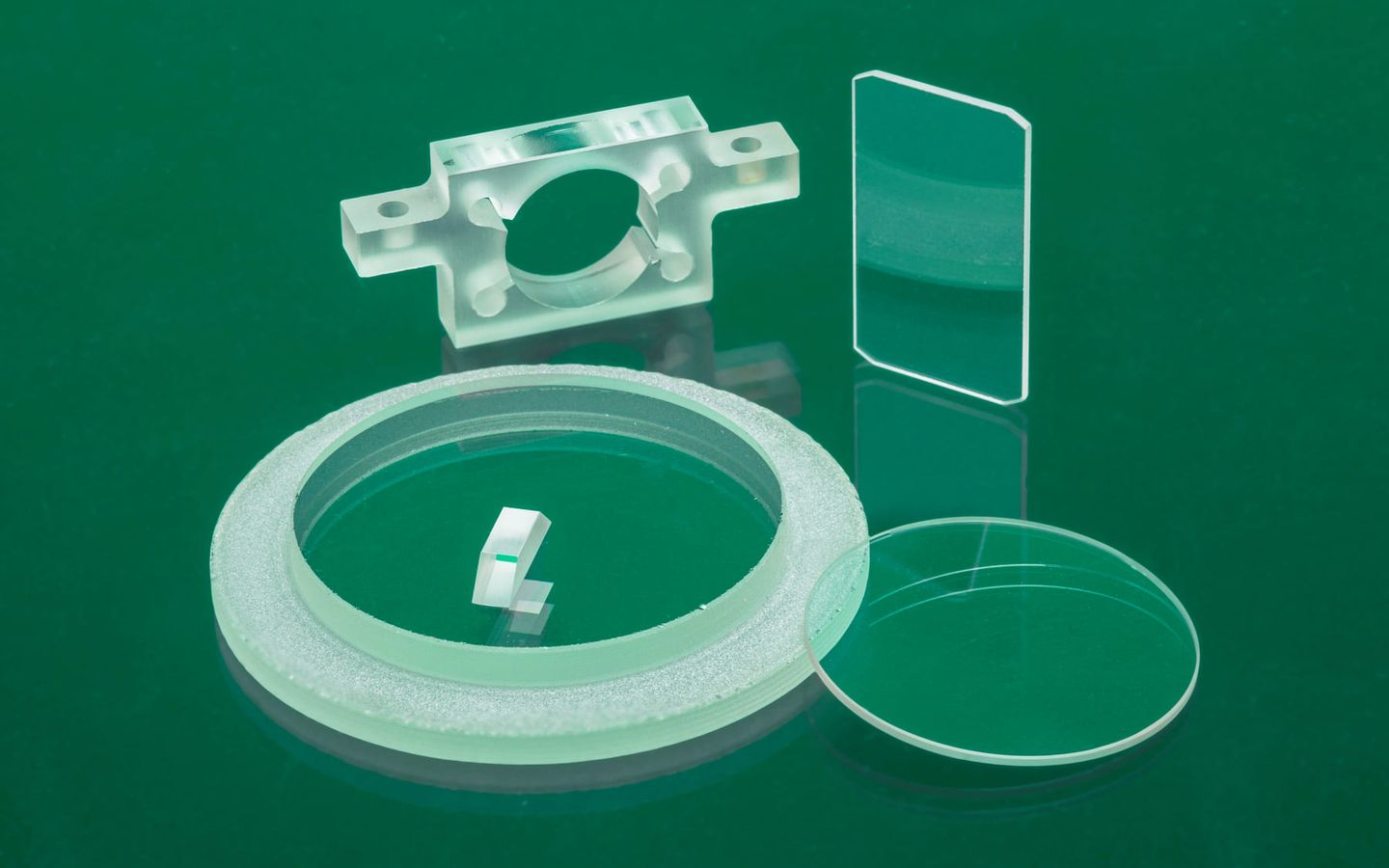

Machined sapphire geometry for mechanical, wear, and precision-engineering functions where the part is structural as well as transmitting.

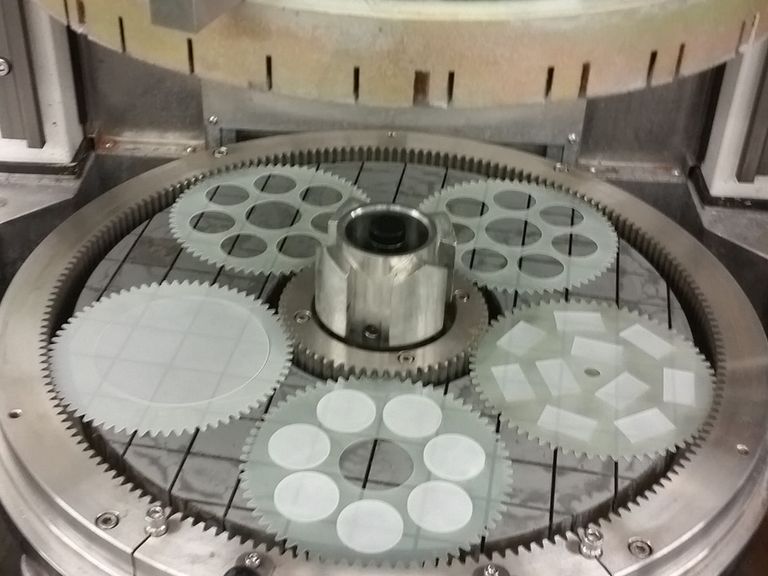

Double-side lapping and polishing for efficient yield, exemplary parallelism, and controlled flatness across both faces at once.
These are IRD's published capability limits across materials and geometries, not a grade every part ships to. Open the process that controls your critical surface and quote against that one.
Sapphire programs combine hard-material machining with optical finishing. These ranges frame the first manufacturability conversation.
| Attribute | Typical | Best case |
|---|---|---|
| Window diameterCustom sapphire windows | Print-defined | Up to 8″ |
| FlatnessSingle- or double-side polished faces | 1/4 wave | 1/10 wave |
| MachiningMounting features, profiles, and custom geometry | ±.005″ dimension | ±.0001″ |
| PolishingOptical faces and performance-critical surfaces | Ra < 1 µin | Ra < 2 Å |
| LappingSeals, spacers, and precision interfaces | ±.000050″ flatness | ±.000010″ |
Sapphire is second only to diamond in hardness, and brittle with it. IRD's published super-hard design guidance names the specification habits that raise cost or make a part unbuildable, and what to write instead.
Sapphire is brittle, and any chip can be found by raising the inspection microscope's magnification far enough, so a drawing that says no chips cannot be satisfied. IRD works with customers to agree a maximum chip size and the method it will be measured by.
On one photonics window program the agreed figure was 125 µm, 0.005 inchIRD reports that a 10 Å finish can be consistently achieved on polished surfaces and that specifying better than that significantly increases cost. On ground surfaces the most commonly specified finish is 32 microinches or greater; 10 or 20 microinches is achievable but costs more depending on material and dimensions.

Tight tolerances require fine grinding or other low-removal-rate finishing to stay repeatable in production. IRD's guidance is to hold large surfaces to ±0.1 mm (±0.004 inch) and smaller dimensions to ±0.05 mm (±0.002 inch), and to reserve anything tighter for a surface that can be ground flat.
Despite the hardness, sharp edges are brittle and will fracture or chip against tight mating surfaces in downstream assembly. IRD's guidance is to specify a chamfer of 0.38 mm (0.015 inch) or greater where one helps; calling for 0.13 mm (0.005 inch) or less raises the manufacturing cost.
Optical-grade sapphire windows under 10 mm in diameter and 0.5 to 2 mm thick are common in photonics, but this customer's print specified no chips, unreachable for a brittle material at up to 10,000 units a month, since any chip can be found by raising the microscope's magnification. The two technical teams met over the window's real quality requirement and agreed a chip specification of less than 125 µm (0.005 inch), a surface finish of 10 Å (0.039 µin), and the measurement method for each. IRD then developed the lapping and polishing processes using Design of Experiment methods to find the optimum finish at every step, and defined measurement using high-magnification microscopy for chip size plus profilometers and white-light interferometers for in-process surface control.
Talk to an applications expert
IRD's published materials, coating, and inspection equipment lists.
The answers an applications engineer would give you on the first call.
Start a quoteUp to 8″ diameter on IRD's precision sapphire machining equipment. That is the published limit; larger apertures need review before they can be quoted.
No. Typical flatness is 1/4 wave, achieved through double-side lapping and polishing, which is also what delivers the parallelism and yield that single-side processing on a material this hard cannot. Better than 1/10 wave is an advanced capability on the right geometry; thickness, diameter, and clear aperture all move what is achievable.
IRD's quoting checklist: application, product type, volume potential and schedule, material, dimensions, surface quality, coatings, assembly, cleaning, and packaging. Attach the drawing. For a new design the technical team runs a no-cost Design for Manufacturability review before quoting, then estimates prototype and production volumes separately.
No. IRD manufactures to your print or performance requirement and contributes material, process, and manufacturability input, the design stays with your team. When a print calls for tighter tolerances than the application requires, IRD will flag the potential over-specification, since it can add unnecessary cost. Final optical design decisions remain yours.

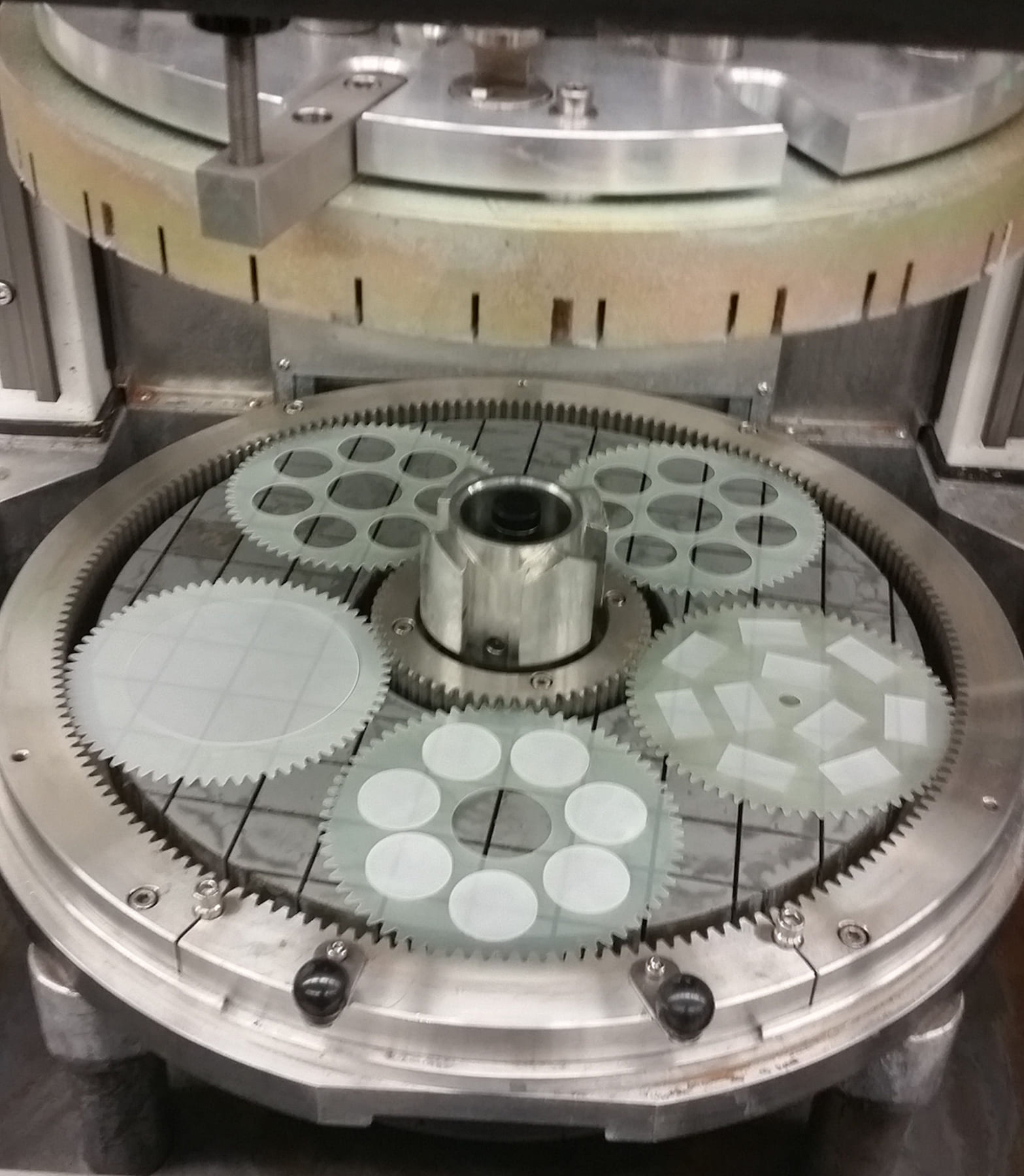

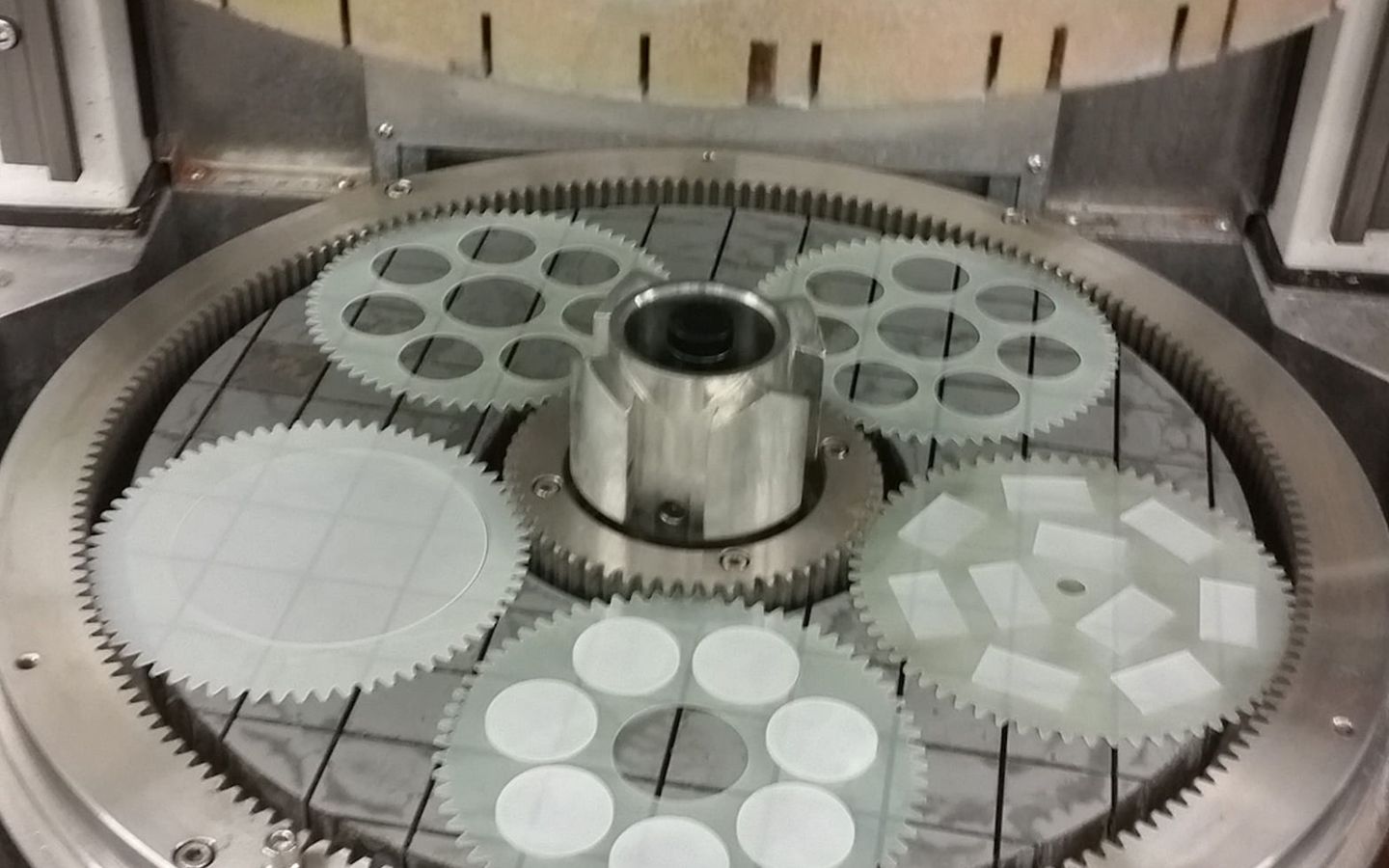

Machining runs to 30″ × 16″ × 16″, polishing to 36″ diameter, grinding to 24″ diameter at 6″ height, lapping to 13.3″ diameter, waterjet to 40″ × 24″ × 2″, and dicing to 8″ diameter at .300″ thick. Larger geometry is quoted against whichever process controls the critical surface.
